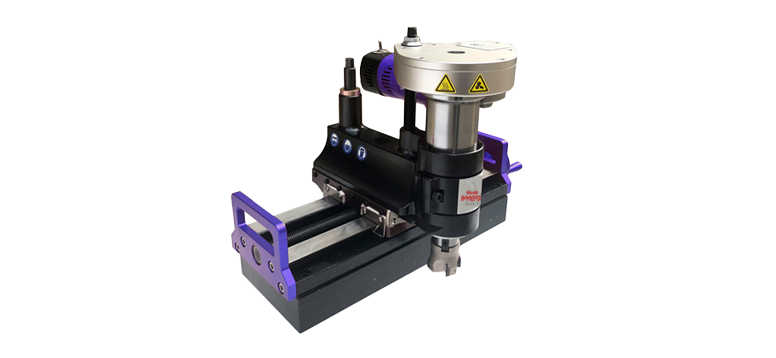

Our KMM300 keyway milling machine is a compact and lightweight. It is fixed with magnet, widely used for non-weldable flat surfaces, easy to installation and disassembly with one person, achieving working within limited space. Perfectly fulfilling keyway milling and surface machining through replacing the cutter. It is a preferred tool for machining small size surface and keyway milling on site or in shop. Save your time and cost.

X Axis stroke: 300mm, Y Axis stroke(manual feed): 100mm, Z Axis stroke(manual feed)​: 80mm, It is a preferred tool for machining small surface and keyway milling on site or in shop…

Features

• Compact, light design
• Magnet installation
• Easy to install and operate
• Unique tool for repairing maintenance immovable workpiece

Technical Data

X Axis Stroke:	300mm(12″)
Y Axis Stroke:	100mm(30-71″)
Z Axis Stroke:	80mm(3″)
X/Y/Z Axis Feed Power Unit:	Manual Feed
Milling Spindle Head Taper:	MT3
Milling Head Drive Power Unit(standard):	Electric Motor
Spindel Head rpm:	0-700
Max Cutting Diameter:	80mm(3″)
Drive Power Unit- Pneumatic:	Single Phase, 110V/230, 50/60Hz, 1700W
Installation Type:	Magnet
Machine Weight:	125Kg
Shipping Weight:	145Kg
